Material Requirements of Indoor Playground Manufactured by Luckyplay

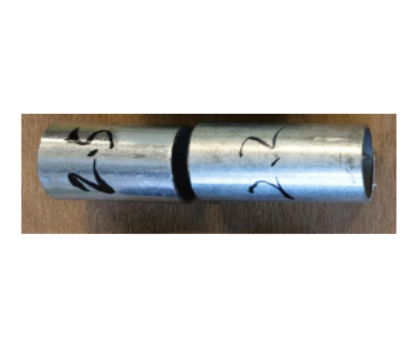

Galvanized steel pipe


Material :Q 235 hot-dip galvanized steel pipe


  1. The diameter is 48 mm, and the wall thickness of the riser used in the frame structure is more than 2.5 mm , and the horizontal pipe wall thickness is more than 2.2 mm;


  1. Through the hot-dip galvanizing process, the anti-corrosion ability is enhanced and the service life is extended;


  1. The unit area (per square meter) of the overall frame has a bearing capacity no less than 150kg

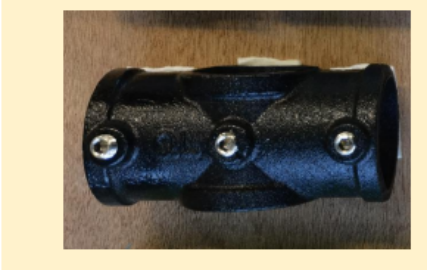

Equal multi- pass

Material: All are ductile iron die- casting

minimum wall thickness is more than 3.5 mm, the thickness of the M 10 threaded hole is more than 10 mm, and the surface Hot-dip galvanized / painted, prepared high-strength compression (not less than 8.8 grade) screws, inner diameter 49~50 mm, can effectively connect galvanized pipes with an outer diameter of 48 mm;

Top wire
Material: 304 stainless steel

Tighten hexagon socket M10 screw concave end top wire, the strength is not lower than 8.8 grade
